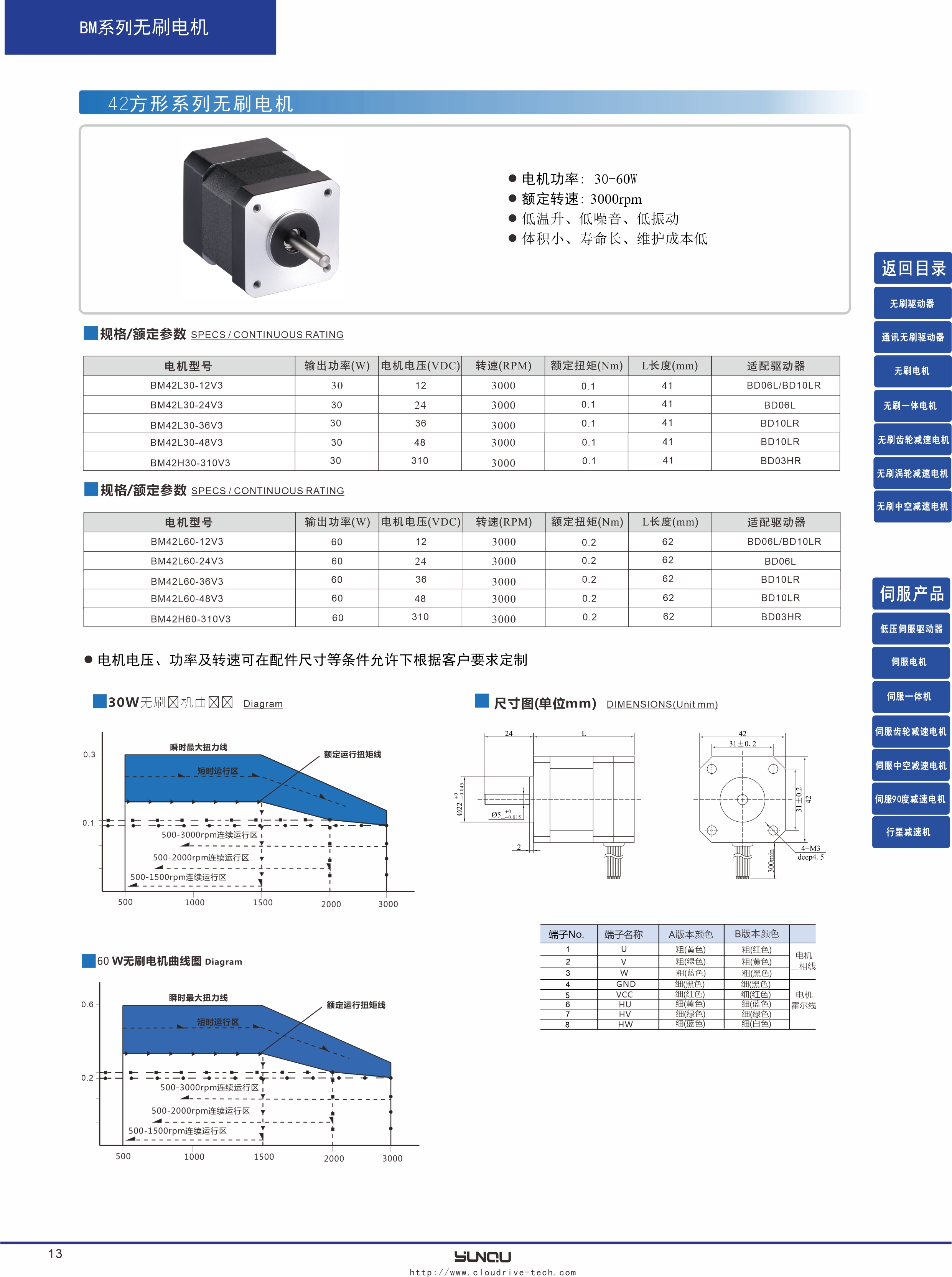

小功率42法蘭無刷電機 不同功率規格參數 生產廠家 提供技術服務
分享
小功率無刷電機
24V 3000RPM 60W
運行平穩
24V 3000RPM 60W
運行平穩
產品詳情
| 系列 | 減速電機型號 | 電源 電壓 V | 輸出 功率 W | 額定 電流 A | 電機 轉速 RPM | 電機 扭矩 N.m | 電機 重量 KG | 適配驅動器 | 資料下載 | ||
| 42系列 | BM42L30-24V3 | DC24 | 30 | 2.5 | 3000 | 0.1 | 0.4 | BD06L | |||
| BM42L30-24V3 | DC24 | 60 | 3.5 | 3000 | 0.2 | 0.5 | BL60A/BLR60A | ||||
| 57系列 | BMY57L60-24V3 | DC24 | 60 | 4.0 | 3000 | 0.2 | 0.6 | BL60A/BLR60A | |||
| BMY57L100-24V3 | DC24 | 120 | 8.0 | 3000 | 0.4 | 1.0 | BL120A/BLR120A | ||||
| BM57L100-24V3 | DC24 | 180 | 12.0 | 3000 | 0.6 | 1.3 | BLR400A | ||||
| 57BLF1230-220-D01A | AC220 | 120 | 0.0 | 3000 | 0.4 | 1.0 | BHR200A | ||||
| 57BLF1830-220-D01A | AC220 | 180 | 1.0 | 3000 | 0.6 | 1.3 | BHR200A | ||||
| 86系列 | 86BLF2230-48-U01B | DC48 | 220 | 5.6 | 3000 | 0.7 | 1.5 | BL300A/BLR300A | |||
| 86BLF4030-48-U01A | DC48 | 400 | 12.0 | 3000 | 1.3 | 2.3 | BLR400A | ||||
| 86BLF7530-48-U01A | DC48 | 750 | 21.0 | 3000 | 2.4 | 4.0 | BL750A | ||||
| 86BLF2230-220-U01B | AC220 | 220 | 2.0 | 3000 | 0.7 | 1.5 | BHR400A | ||||
| 86BLF4030-220-U01B | AC220 | 400 | 3.0 | 3000 | 1.3 | 2.3 | BHR400A | ||||
| 86BLF7530-220-U01B | AC220 | 750 | 6.0 | 3000 | 2.4 | 4.0 | BHR750A | ||||
| 110系列 | 110BLF10030-24-U01A | DC24 | 1000 | 55.0 | 3000 | 3.3 | 5.5 | BLR1500A | |||
| 110BLF10018-48-U01A | DC48 | 1000 | 26.0 | 1800 | 5.0 | 6.8 | BLR1500A | ||||
| 110BLF15018-48-U01A | DC48 | 1500 | 40.0 | 1800 | 7.5 | 8.0 | BLR1500A | ||||
| 110BLF10030-220-U01A | AC220V | 1000 | 5.0 | 3000 | 3.2 | 5.5 | BHR1500A | ||||
| 110BLF15030-220-U01A | AC220V | 1500 | 6.5 | 3000 | 5.0 | 7.0 | BHR1500A | ||||
